Factory Torque Specifications for Bolts and Fasteners on John Deere 466
Set the flywheel bolts to 200 ft-lb using a calibrated torque wrench. Apply thread locker before tightening to prevent loosening during operation. Recheck torque after initial warm-up cycle.
Tighten the cylinder head bolts in the correct sequence in three steps: first to 60 ft-lb, then to 90 ft-lb, and finally to 125 ft-lb. Always follow the diagonal pattern from the center outward to avoid warping. Replace any bolts showing signs of stretch or corrosion.
Apply 45 ft-lb of torque to the connecting rod bolts during assembly. After rotating the crankshaft twice, confirm the bolts maintain their value. If any bolt loosens, replace both the bolt and nut.

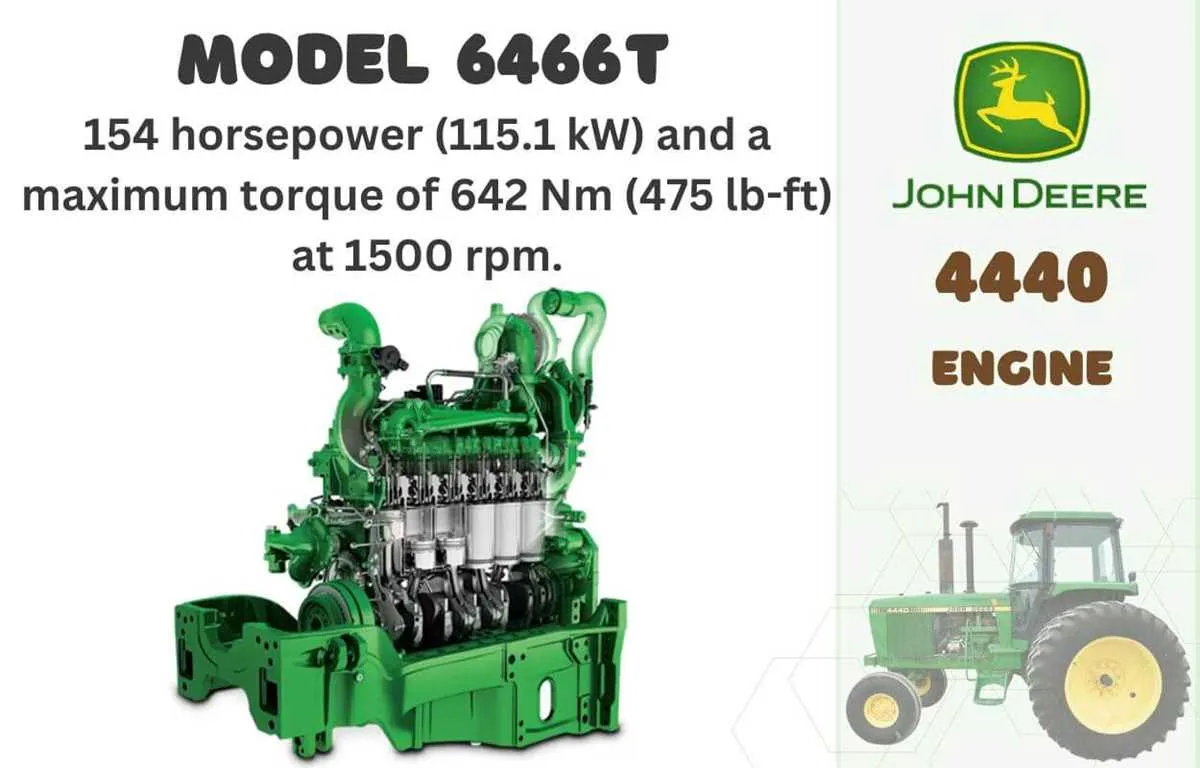

John Deere 466 Torque Specs for Engine and Component Bolts
Use 125 ft-lb (169 Nm) of torque when tightening the main bearing cap bolts on the John Deere 466 engine. Always follow the tightening sequence recommended in the service manual to prevent bearing misalignment.
The connecting rod cap bolts require 70 ft-lb (95 Nm). Replace the bolts if they show signs of stretch or wear. Do not reuse bolts beyond their service limit.
Apply 35 ft-lb (47 Nm) to the rocker arm shaft bolts. Before tightening, ensure the pushrods are seated correctly, and check for proper clearance at the valve tips.
For cylinder head bolts, follow a three-step torque sequence:
- First pass: 90 ft-lb (122 Nm)
- Second pass: 110 ft-lb (149 Nm)
- Final pass: 130 ft-lb (176 Nm)
Make sure to torque the bolts in the prescribed spiral pattern from the center outward to maintain head gasket sealing.
Use 18 ft-lb (24 Nm) for valve cover bolts to avoid warping the cover or damaging the gasket.
When installing the intake and exhaust manifold bolts, apply 32 ft-lb (43 Nm). Uneven torque may lead to flange distortion or gasket failure.
For the oil pan bolts, use a cross-pattern and torque to 17 ft-lb (23 Nm). Apply thread sealant where required to prevent leaks.
The flywheel bolts should be torqued to 220 ft-lb (298 Nm). Inspect bolt threads and apply Loctite 262 or equivalent before installation.
All torque values assume clean, lightly oiled threads unless otherwise specified in the manual.
Factory Torque Values for Cylinder Head, Rod, and Main Cap Bolts
Torque all cylinder head bolts on the John Deere 466 engine in three stages. First, apply 50 ft-lb (68 Nm), then 90 ft-lb (122 Nm), and finally rotate each bolt an additional 90 degrees. Always follow the tightening sequence from the center outward in a spiral pattern to prevent head distortion.
Rod bolts require 45 ft-lb (61 Nm) followed by a 60-degree angle turn. Use clean engine oil on the threads and under the bolt heads. Never reuse rod bolts if previously stretched or damaged.
Main cap bolts demand 100 ft-lb (136 Nm) for the outer bolts and 110 ft-lb (149 Nm) for the inner bolts. Apply torque in two passes, starting from the center cap and moving outward. Confirm all bolts are clean and lubricated with engine oil before tightening.
Recheck torque after initial engine warm-up and cooling cycle. Replace any bolts showing signs of fatigue or corrosion. Use only a calibrated torque wrench to avoid uneven loading and component damage.
Torque Settings for Flywheel, Clutch, and Rear Crankshaft Components
Tighten the flywheel bolts to 230 lb-ft (312 Nm) using a star pattern across multiple stages. Always apply clean engine oil to the threads and bolt seating surfaces to avoid galling and ensure consistent clamping force.
Secure the pressure plate to the flywheel with bolts torqued to 35 lb-ft (47 Nm). Use threadlocker if specified by the clutch manufacturer. Gradually tighten in a crisscross pattern to prevent warping the pressure plate cover.
For the rear crankshaft seal housing bolts, apply 18 lb-ft (24 Nm). Clean the gasket surfaces and align the housing evenly before tightening. If using a one-piece seal, press it flush with the block face without distortion.
Replace any fasteners that show signs of wear or stretching. Never reuse flywheel bolts unless they’re rated as reusable by the manufacturer. Always follow proper torque sequence and avoid using impact tools during final tightening.
Recommended Torque Specifications for External Engine Fasteners and Covers
Tighten the valve cover bolts on the John Deere 466 engine to 10 ft-lb (14 Nm) using a crisscross pattern to prevent warping. Avoid overtightening, as the cover is prone to distortion.
Secure the timing gear cover bolts with a torque of 18 ft-lb (24 Nm). Always inspect the gasket surface and ensure it’s clean before installation to prevent leaks.
Torque the oil pan bolts to 20 ft-lb (27 Nm). Begin from the center and move outward in a cross pattern to ensure even sealing. Replace any damaged rubber grommets if present.
The intake manifold bolts require 35 ft-lb (47 Nm). Clean threads and apply a small amount of anti-seize compound, especially in high-humidity regions, to avoid galling.
Use 25 ft-lb (34 Nm) for the exhaust manifold bolts. Re-torque after the engine has gone through its initial heat cycle to compensate for thermal expansion.
Install the thermostat housing bolts at 18 ft-lb (24 Nm). Ensure a snug fit around the thermostat and double-check alignment before final tightening.
For the front engine mounting bolts, apply 80 ft-lb (108 Nm). These support significant load, so verify bolt condition and thread integrity before installation.
Recheck all torqued fasteners after one hour of operation to detect any settling or gasket compression. Stick to calibrated torque tools and record values during reassembly for consistency.
