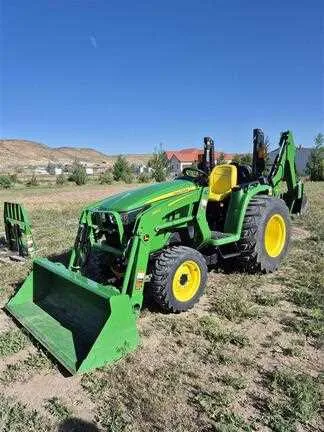

2020 John Deere 3032E Tractor Specifications and Features

The 2020 John Deere 3032E is built for utility and precision, offering a balance of power and maneuverability. It features a 32-horsepower engine, which provides ample performance for various tasks like mowing, tilling, and loader work. With a 4WD configuration, it delivers stability and traction in tough terrain.

The hydrostatic transmission on the 3032E is designed for smooth operation, allowing operators to easily adjust speed without the need for clutching or shifting gears. This feature significantly improves productivity by reducing downtime between tasks. Its Category 1 three-point hitch enhances versatility, enabling the use of a wide range of implements.

For operators who prioritize comfort, the 3032E includes ergonomic controls and an open platform design, providing easy access to all major functions. With a lifting capacity of over 1,100 pounds at the lift point, this tractor is well-suited for tasks requiring both strength and precision.

2020 John Deere 3032E Specs

The 2020 John Deere 3032E tractor features a 3-cylinder, 32.3 horsepower Yanmar engine, designed for superior performance in tight spaces and heavy-duty tasks. With a hydrostatic transmission, it offers smooth operation and seamless speed adjustments, ideal for handling various attachments.

This compact utility tractor is equipped with a 4WD drivetrain, ensuring stability and power distribution in challenging conditions. The rear PTO delivers 540 RPM, making it suitable for a wide range of implements such as mowers, tillers, and loaders.

The hydraulic system of the 3032E is rated at 7.2 GPM, providing strong lifting power for front-end loaders and other hydraulic attachments. Its lifting capacity reaches 1,200 pounds at the lift point, making it capable of handling moderately heavy loads with ease.

The 2020 model also features an ergonomic operator station with easy-to-reach controls, enhancing comfort during long working hours. A standard 2-range PTO system offers versatility for different attachments and tasks.

For operators looking for ease of maintenance, the 3032E provides easy access to key components, reducing downtime and simplifying service needs. Its fuel tank capacity of 6.9 gallons allows for longer operational periods between refueling.

Engine and Power Output Specifications

The 2020 John Deere 3032E is powered by a 3-cylinder Yanmar diesel engine with a displacement of 1.9 liters. This engine delivers 32 horsepower (hp) at 2,600 RPM, providing a balance of power and efficiency for various tasks. With a fuel tank capacity of 13.5 gallons, the 3032E can operate for extended periods without frequent refueling, making it ideal for long hours of work.

Torque output reaches 78 lb-ft at 1,600 RPM, which enhances the tractor’s ability to handle demanding tasks like tilling, plowing, and hauling. The powertrain includes a 2-range hydrostatic transmission, which allows smooth and precise control over speed and direction, further maximizing the engine’s potential in different working conditions.

For those needing additional performance, the PTO (Power Take-Off) offers 24.6 hp, making the tractor compatible with a range of implements such as mowers, tillers, and sprayers. The tractor’s engine meets the stringent emissions standards, ensuring that it is both environmentally friendly and reliable for various agricultural and construction applications.

Hydraulic System and Capacity Details

The 2020 John Deere 3032E comes equipped with a highly efficient hydraulic system designed to perform under demanding conditions. The system’s total hydraulic flow is 8.8 gpm (33.3 lpm), which allows for quick response times and improved performance during tasks like loader work and lifting.

The hydraulic pump operates at a rated pressure of 2500 psi, ensuring maximum efficiency while handling heavy-duty operations. The system features a load-sensing design, which adjusts the flow and pressure according to the work requirements, enhancing fuel efficiency without sacrificing power.

• Hydraulic Pump Flow: 8.8 gpm (33.3 lpm)
• System Pressure: 2500 psi
• Hydraulic Reservoir Capacity: 7.3 gallons (27.6 L)
• Loader Lift Capacity at Full Height: 1,000 lbs (453.6 kg)
• Max Loader Reach: 63.6 inches (1.6 m)
• Max Lift Height: 82 inches (2.08 m)

These specifications contribute to smooth and effective operation across various tasks. Regular maintenance and using the appropriate hydraulic fluid will ensure the system’s long-term reliability and prevent unnecessary wear.

Maintenance and Durability Insights

Regular maintenance is key to ensuring the longevity and smooth performance of your 2020 John Deere 3032E. Schedule oil changes every 50 hours of operation or at least once a year, whichever comes first, to prevent engine wear. Use high-quality engine oil that meets the manufacturer’s specifications to maximize efficiency.

Check the air filter every 100 hours of operation and replace it if it’s clogged or damaged. This ensures proper airflow to the engine, reducing the risk of overheating. Clean the radiator periodically to avoid debris buildup that can lead to overheating during heavy use.

Inspect the hydraulic system regularly. Look for leaks or signs of wear in hoses and fittings. Hydraulic fluid should be changed every 1200 hours to prevent contamination and ensure optimal performance. Keep the hydraulic oil at the proper level, as low fluid can strain the system and reduce lifting capacity.

The tractor’s tires should be checked for proper inflation and wear. Under-inflated tires can cause uneven wear, affecting fuel efficiency and performance. Rotate the tires as needed to ensure even wear over time.

For the 3032E’s drivetrain, keep the belts and pulleys in good condition. Lubricate the drive shafts and check for any looseness that could lead to premature wear or failure. Inspect the steering and suspension components periodically to ensure they remain tight and responsive.

Proper storage is vital for preserving the tractor’s durability. If you’re storing the 3032E for an extended period, clean it thoroughly and ensure that all fluids are at appropriate levels. Use a cover to protect it from environmental damage, and store it in a dry, sheltered location to avoid corrosion.
