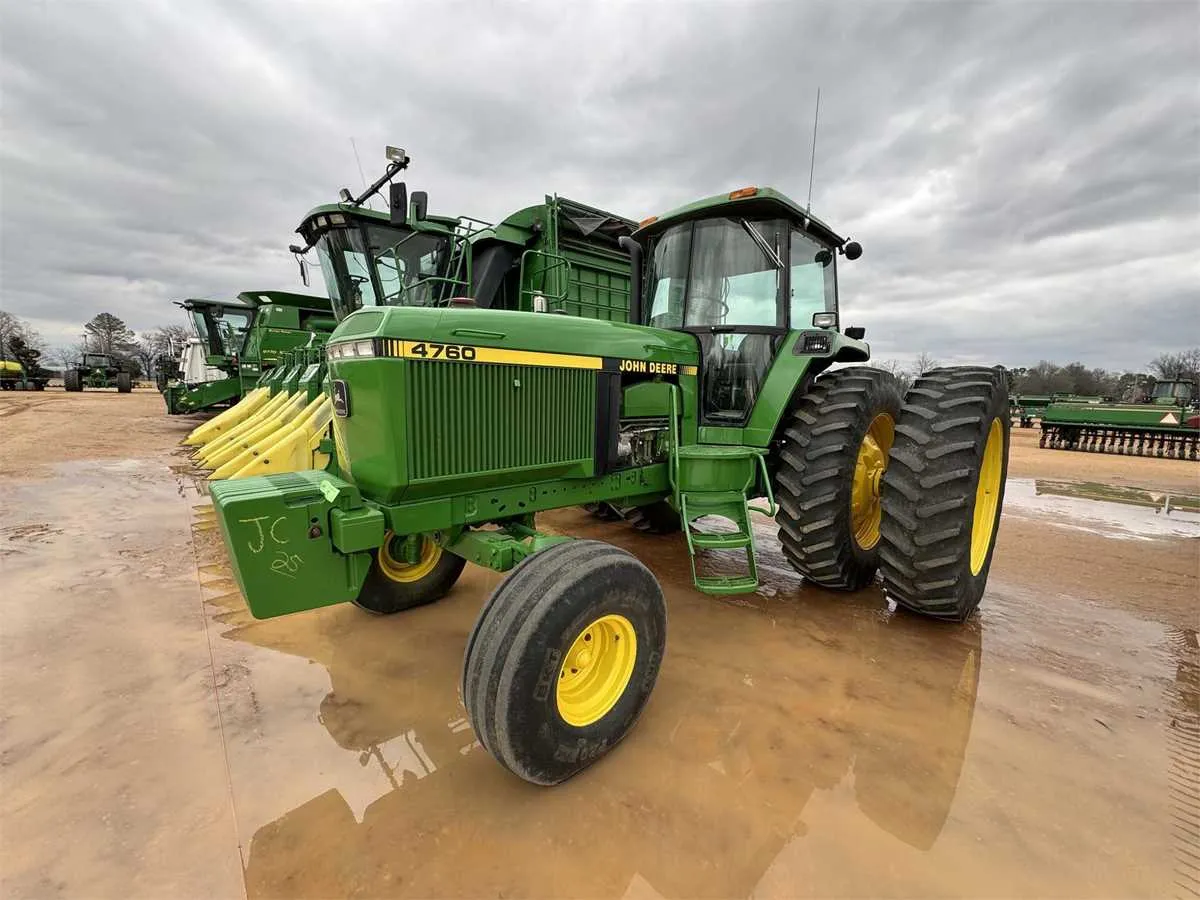

John Deere 4760 Air Conditioning System Specifications and Features

The John Deere 4760 is a reliable tractor designed to handle a variety of tasks with power and efficiency. When it comes to air conditioning, the 4760 offers a system that ensures comfort during long working hours, particularly in challenging weather conditions. The air conditioning system is robust, providing sufficient cooling capacity for operators working in hot climates.

The AC system on the John Deere 4760 features a high-performance compressor capable of maintaining a consistent temperature in the cab. With a fully adjustable fan system, operators can control airflow, ensuring optimal comfort. This is especially useful when working on demanding tasks, such as tilling or hauling, where staying cool is essential for maintaining focus and productivity.

Additionally, the HVAC system integrates seamlessly with the tractor’s overall design, offering a balance between cooling efficiency and minimal power consumption. It’s easy to maintain, and the cabin itself is designed for accessibility, allowing quick servicing if needed. Operators who frequently work in extreme conditions will find the air conditioning system a key feature that enhances the comfort and usability of the John Deere 4760.

John Deere 4760 AC Specs

The John Deere 4760 offers a robust and reliable air conditioning system designed to handle demanding environments. Its AC features ensure comfort during long hours of operation in hot conditions.

Key Specifications:

• Air Conditioning System Type: Closed-loop cooling system with a high-efficiency compressor.
• Compressor: Variable displacement compressor, optimized for fuel efficiency and performance.
• Refrigerant: R-134a, an environmentally friendly refrigerant that meets industry standards.
• Cab Temperature Control: Automatic climate control system, allowing the operator to adjust temperature settings to maintain a comfortable environment.
• Air Distribution: Dual-zone airflow for even temperature distribution throughout the cab area.
• Cab Air Filtration: High-performance filters to ensure clean air circulation within the cab.
• System Capacity: 16,000 BTU (British Thermal Units), providing excellent cooling performance even in extreme heat.
• Ventilation: Adjustable air vents for custom airflow directions to the operator’s preference.

These AC specifications highlight the 4760’s focus on operator comfort and machine efficiency. The system’s design offers durability and reliability, making it ideal for long days in challenging conditions. Make sure to regularly maintain the system to ensure optimal performance and comfort in your John Deere 4760.

John Deere 4760 Air Conditioning System Components

The John Deere 4760 features a reliable air conditioning system designed for performance in harsh conditions. Key components of the system include the compressor, condenser, evaporator, expansion valve, and accumulator. Each part plays a specific role in ensuring the cabin remains cool and comfortable, even during extended hours of operation.

The air conditioning compressor is powered by the engine and is responsible for compressing refrigerant gas. It’s vital to maintain proper refrigerant levels to avoid overloading the system and ensure optimal cooling. If the compressor isn’t functioning correctly, the entire A/C system will fail to cool efficiently.

The condenser, usually located in front of the radiator, releases heat from the refrigerant. It transforms the gas into liquid form as the refrigerant cools down. Keep the condenser clean to maintain airflow and prevent any blockages that can lead to overheating.

The evaporator, located inside the cabin, absorbs heat and moisture from the air. As the refrigerant passes through it, the air cools and is circulated back into the cabin. Regular maintenance, including changing the cabin air filter, can ensure the evaporator remains effective and free from dirt or debris.

The expansion valve regulates the flow of refrigerant into the evaporator, controlling the system’s cooling capacity. It’s important to monitor this valve for any leaks or malfunctions, which could result in inconsistent cooling performance.

The accumulator collects excess moisture and prevents it from entering the compressor, which could cause damage. Ensure the accumulator is in good condition to avoid moisture buildup, which can lead to compressor failure.

Regular checks on refrigerant levels, inspections for leaks, and periodic cleaning of the components will keep the system functioning properly. Any noticeable decrease in cooling efficiency should prompt a closer look at these critical components to prevent costly repairs.

Cooling Capacity and Performance of the John Deere 4760 AC

The air conditioning system of the John Deere 4760 is designed to efficiently cool the cabin, even in hot working conditions. It has a cooling capacity of 35,000 BTU, which provides ample airflow to maintain a comfortable environment inside the cabin. The system uses a high-performance compressor and an optimized condenser to quickly lower temperatures, ensuring that operators can focus on the task without being affected by heat.

With its high-efficiency evaporator and large condenser, the 4760 AC can cool the cabin effectively even under heavy load or in extreme temperatures. The air distribution is even, ensuring that no areas of the cabin remain uncooled, which is especially important during long hours in the field. The system operates with minimal noise, providing a quiet and comfortable environment for the operator.

For optimal performance, regular maintenance, such as checking the refrigerant level and ensuring the air filters are clean, is recommended. These actions will help maintain the cooling performance and prevent system failures during critical work periods. The John Deere 4760 AC system is engineered for durability and reliability, offering long-term performance when properly maintained.

Common Maintenance and Troubleshooting for John Deere 4760 AC System

Regularly replace the AC system’s cabin air filter every 500 hours of operation or as needed. This prevents airflow restriction and ensures optimal cooling efficiency. Be sure to check the filter for dirt and debris before this interval in dusty conditions.

If the air conditioning system is blowing warm air, start by inspecting the refrigerant level. Low refrigerant is a common cause of inadequate cooling. Use a pressure gauge to check the refrigerant level and recharge it if necessary. If the pressure is normal but the system still doesn’t cool, a faulty compressor may be the issue.

Inspect the condenser for obstructions like dirt or debris. Blocked condensers can severely reduce the system’s performance. Clean the condenser using compressed air or water, but avoid using harsh chemicals that could damage components.

Check the AC compressor drive belt for wear or slack. A worn-out belt may lead to slipping, reducing the system’s effectiveness. If you notice any cracks or significant wear, replace the belt as soon as possible.

Inspect the AC evaporator for signs of ice buildup. Ice can block airflow and reduce cooling efficiency. If ice is present, check for low refrigerant levels, a malfunctioning thermostat, or a blocked evaporator coil.

If the AC system is making unusual noises, inspect the blower motor and fan for any obstructions. Sounds like squealing or rattling could indicate loose or damaged components, such as the blower fan blades or motor bearings.

Regularly clean the evaporator drain to prevent water buildup inside the system. A clogged drain can lead to water damage, mold growth, or system failure. Use a small wire or a can of compressed air to clear any debris.

In cases of poor airflow, check the ductwork for blockages or leaks. Ensure that the ducts are tightly sealed and free from debris. Replace any cracked or damaged hoses to maintain airflow efficiency.

If the AC system’s performance continues to decline despite performing these checks, consider having a professional technician inspect the system for more complex issues such as faulty sensors or electrical problems in the system’s wiring.
