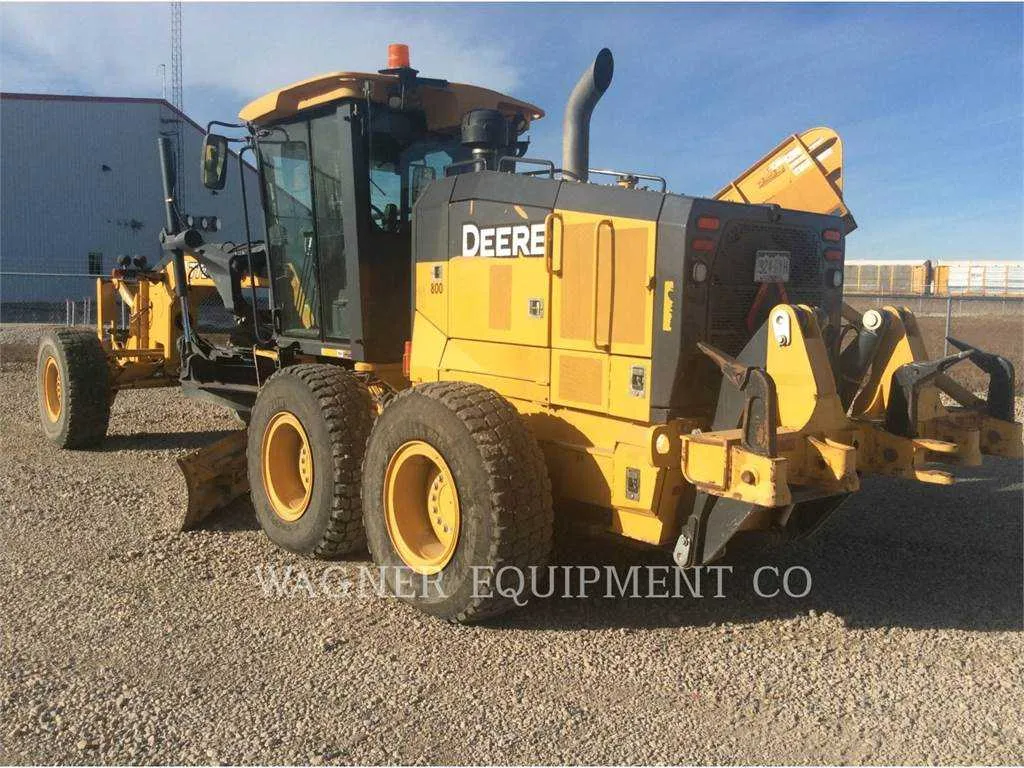

John Deere 772G Grader Technical Specifications and Key Features

The John Deere 772G grader is designed to deliver superior productivity in a variety of grading tasks. With its powerful engine and advanced hydraulic system, it provides reliable performance across rough terrains. The machine is equipped with a 6-cylinder, 9.0L turbocharged engine that produces up to 240 horsepower, making it capable of handling large-scale projects efficiently.

The frame and axles are built for durability, ensuring stability even under heavy load conditions. The 772G’s articulated frame enhances maneuverability, allowing operators to navigate tight spaces with ease. The operator’s station is ergonomically designed, featuring intuitive controls for improved comfort and precision during long work shifts.

For added versatility, the grader offers a range of blade options, including standard and optional configurations that can be adjusted based on specific job requirements. With its ability to adjust the cutting angle, tilt, and depth, it delivers high-quality results on grading projects ranging from road construction to fine grading work.

Hydraulic improvements in the 772G model ensure faster response times and precise blade control. The automated systems help reduce operator fatigue while increasing the overall productivity of the machine. These enhancements, coupled with the machine’s fuel-efficient engine, contribute to lower operational costs over time.

John Deere 772G Grader Specifications

The John Deere 772G motor grader features a 9.0L, 6-cylinder engine, delivering 235 horsepower, optimized for both power and fuel efficiency. With a maximum operating weight of 26,635 lbs (12,080 kg), it offers excellent stability while working on various terrains.

The machine’s blade is 14 feet long, providing a precise cut for a variety of grading tasks. Equipped with advanced hydraulic systems, it offers smooth and reliable blade control, crucial for accurate work. The 772G’s operating range includes a maximum reach of 24.2 feet (7.4 meters), allowing for greater versatility in grading.

With a 4-wheel drive configuration, the 772G ensures exceptional traction and maneuverability even in challenging conditions. The machine’s turning radius is 22 feet (6.7 meters), contributing to its excellent handling in tight spaces.

The cab of the 772G is designed with comfort and safety in mind, offering easy access, climate control, and improved visibility. It features an integrated display for monitoring key metrics, ensuring operators have the information they need to work efficiently.

Engine and Powertrain Features of the John Deere 772G

The John Deere 772G grader is powered by a 6-cylinder, 9.0-liter PowerTech™ PSS engine that delivers a net power of 240 hp (179 kW). This engine is designed to provide optimal performance in demanding conditions while maintaining fuel efficiency.

The PowerTech™ engine is coupled with a fully integrated PowerShift transmission. This transmission allows for smooth gear changes without interrupting power delivery, ensuring consistent productivity. The 772G’s transmission features four forward and three reverse speeds, which can be easily selected based on the task at hand.

For maximum control and traction, the grader comes with an all-wheel drive (AWD) system, providing excellent performance across a variety of terrains. The 772G also features an optional front-wheel assist (FWA) system, offering additional traction during tough jobs.

The engine is designed to comply with Tier 4 Final emissions standards, incorporating advanced after-treatment technologies. These systems reduce harmful emissions without sacrificing performance, making the 772G an environmentally conscious option for heavy-duty grading tasks.

The powertrain’s design ensures that the machine is capable of handling tough grading applications while providing longevity and reduced maintenance requirements. The cooling system is also well-suited to maintain engine temperatures, even during extended operational periods, which helps maximize uptime.

Hydraulic and Blade System of the John Deere 772G Grader

The John Deere 772G Grader incorporates a high-performance hydraulic system that ensures smooth and precise blade control. The machine’s hydraulic pumps provide 127 liters per minute (33.5 gpm) of flow, allowing for rapid blade adjustments and high productivity on the job site.

The blade system includes a 14-foot (4.3 meters) moldboard that can be adjusted to a variety of angles. This allows for superior grading performance, whether it’s for rough grading or fine finish work. The moldboard features a mechanical side shift, giving operators the flexibility to adjust the blade’s position laterally by up to 4.5 inches (114 mm) to avoid obstacles without repositioning the entire machine.

Hydraulic cylinders on the John Deere 772G Grader are designed to provide consistent, powerful performance. The lift cylinders have a maximum stroke length of 54 inches (137 cm), which allows for a range of grading angles. The tilt and side-shift cylinders are also optimized for responsive control, ensuring that the grader can handle various terrains and conditions with ease.

For maximum blade durability, the 772G features heavy-duty components that can withstand harsh operating conditions. The moldboard is designed with a robust cutting edge, which can be easily replaced when worn out. The grader’s hydraulic system is built to provide long-lasting performance while minimizing maintenance downtime.

Operating Dimensions and Weight Distribution of the John Deere 772G

The John Deere 772G Grader offers precise handling and stability due to its well-designed operating dimensions and balanced weight distribution. Understanding these factors helps in optimizing the grader’s performance on various terrains.

• Overall Length: 8,135 mm (320 in) – ensures stability and maneuverability in different working environments.
• Width: 2,559 mm (101 in) – the wide base provides better surface contact for enhanced traction and stability.
• Height: 3,350 mm (132 in) – sufficient clearance for working on uneven surfaces while maintaining a low center of gravity.
• Wheelbase: 5,655 mm (222 in) – contributes to improved stability during operations and a smoother ride on rough ground.

Weight distribution plays a vital role in the grader’s performance, especially when handling various loads. The 772G is built to evenly distribute its weight across the axles, optimizing traction and reducing the risk of tire wear.

• Operating Weight: 17,322 kg (38,200 lbs) – this substantial weight ensures the machine stays grounded, even in tough conditions.
• Front Axle Weight: 7,500 kg (16,535 lbs) – provides optimal lifting power for the front blade.
• Rear Axle Weight: 9,822 kg (21,665 lbs) – the rear weight ensures the grader remains balanced, especially during pushing and grading operations.

These dimensions and weight distribution characteristics contribute to the John Deere 772G’s ability to perform efficiently in various conditions, ensuring durability and high productivity in demanding work environments.
